72" Stamco Slitting Line
Slitters & Slitting Lines
-Material: CR, HR, P & O, Aluminum, Galvanized
-Coil Width: 12" - 72"
-Coil Weight: 60,000# Entry
40,000# Exit
-Entry Coil I.D.: 20" - 24"
-Entry Coil O.D.: 72"
-Exit Coil I.D.: 20" I.D.
-Exit O.D.: 72"
-Line Speed: 400 / 1200 FPM
-Line Direction: Right to Left
| Max Width | 72" |
-Entry 4 Arm Turnstile:
Hydraulic Rotation
C-Hook Type Arms
-Entry L Type Coil Car:
60,000# Capacity
24" Vertical Lift Range
Self-Contained Hydraulic Unit
10 HP AC Motor

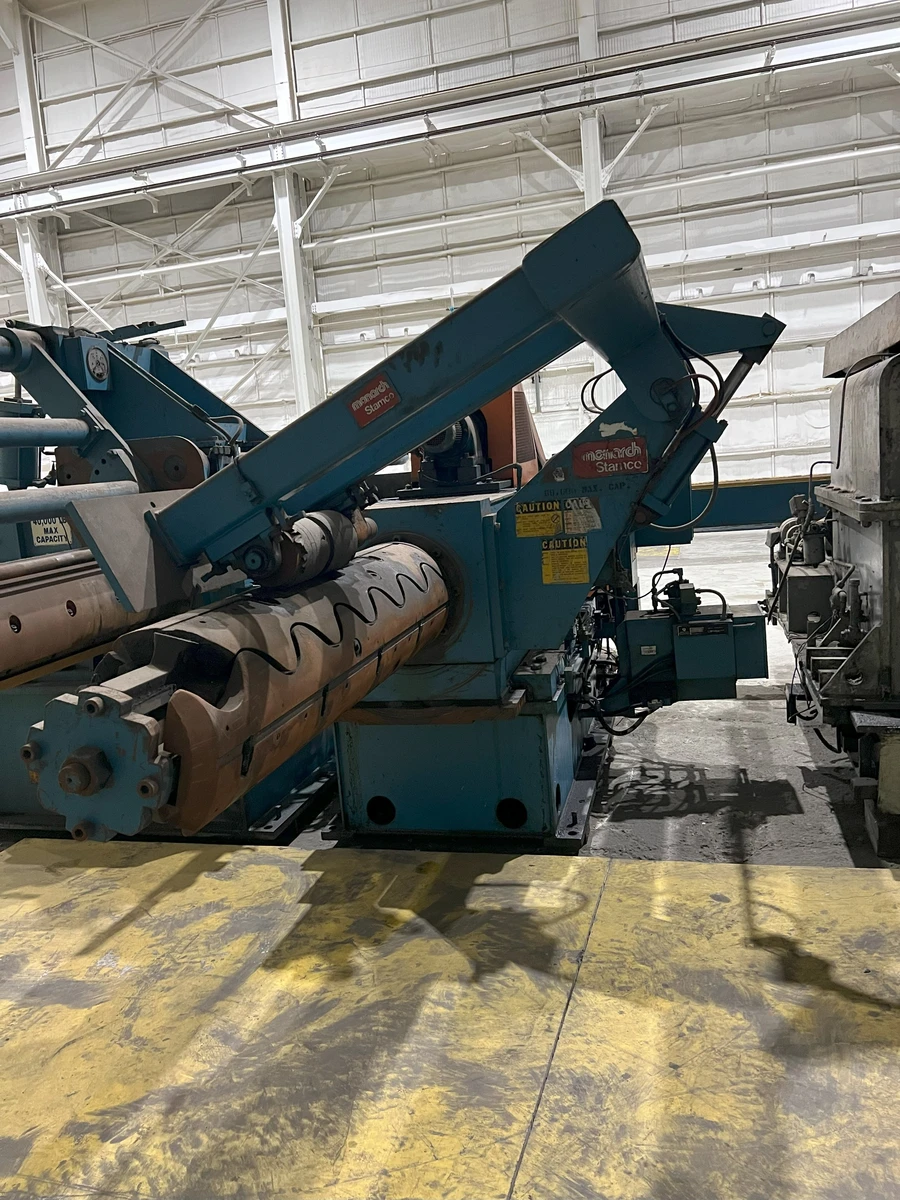

-Mandrel Uncoiler:
60,000# Capacity
78" Face Pumpkin Tooth Mandrel
Electric Motor Threading Drive
Wichita Water Cooled Brake
Sliding Base
Holddown Roll
-Hydraulic Peeler Table:
-Entry Pinch Rolls:
8" Diameter x 78" Face Rolls
-Hydraulic Crop Shear:
78" Blade Length
-Slitter Heads:
Two (2) Injector Type Slitter Heads
7.50" Dia. Arbors
Double Eccentric Arbor Adjustment
100 HP DC Motor, 1750/2150 RPM
2 Speed Transmission
Gear Reducer w/5.056:1 ratio
-Hydraulic Strip Clamp / Threader with Hydraulic Traverse
Recoiler Thread Table
-Looping Pit:
-Tension Stand:
Roll Type
Water Cooled Brake on Bottom Roll
-Recoiler:
40,000# Capacity
20" Dia. x 78" Face Drum
Hydraulic Pushoff w/84" Stroke Cylinder
Overarm Separator
150 HP DC Motor, 850/2550 RPM, 500 V
2 Speed Brad Foote Gearbox w/13.4:1 and 40.1:1 ratios
-Scrap Baller:
25 HP AC Motor
-Exit L Type Coil Car:
24" Lift Range
Self-Contained Hydraulic Unit
10 HP AC Motor
-Exit 4 Arm Turnstile:
Hydraulic Rotation
-Slitter Tooling included
