Paxson Slitting Line

Driven Loop / Injector Head

Maximum Entry Weight: 50,000 lbs.
Maximum Exit Weight: 45,000 lbs.
Coil ID Range Entry: 20" to 30"
Coil ID Range Exit: 20" to 24"
Material Processed: CR, Galv. Aluminum & Painted
Line Speed: 500 FPM
Line Direction: Uncoiler: Left to Right
Recoiler: Right to Left

Consisting of the following:

-Entry L Type Coil Car:
-Mandrel Type Uncoiler:
Water Cooled Brake
Outboard Bearing
Slide Base
Overarm Holddown
-Peeler Table
-Entry Crop Shear

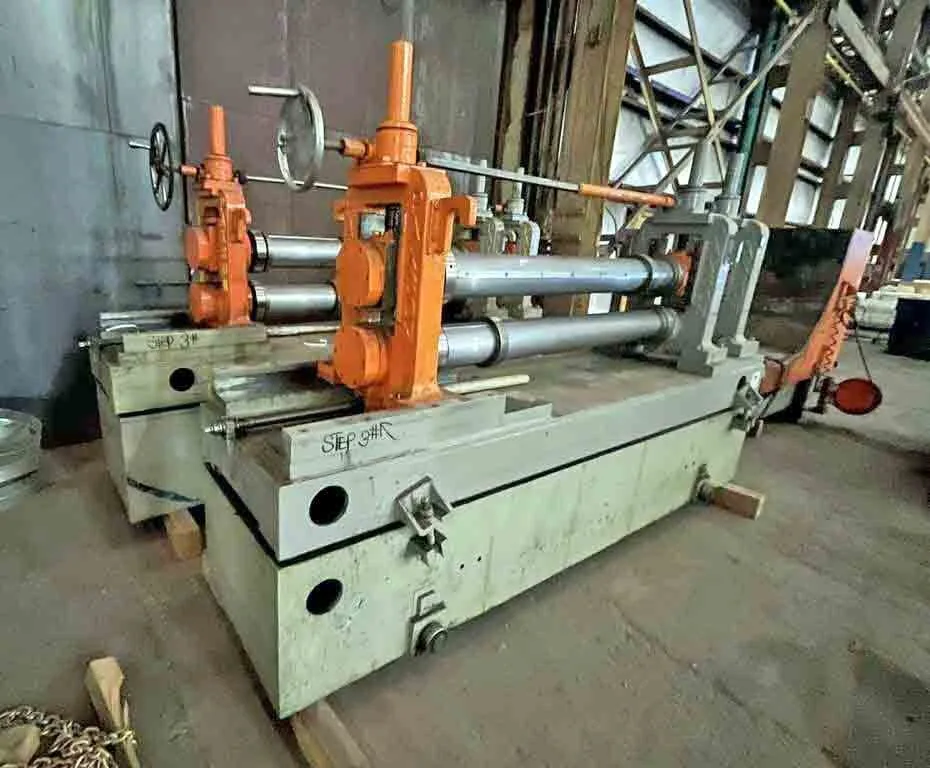

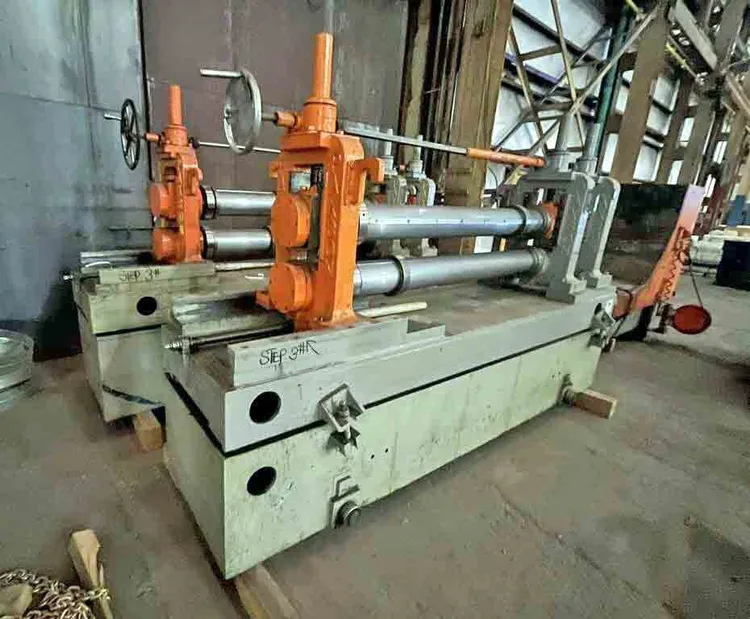

-Injector Head Type Slitter:
7" Arbors
2 Heads
-Combo Roll & Pad Tension Stand
Water Cooled Brakes
-Exit Crop Shear
-Dual Scrap Winders
-Recoiler:
Overarm Separator
Outboard Bearing
Pushoff
-Exit Coil Car
-Downlayer
-Conveyor
